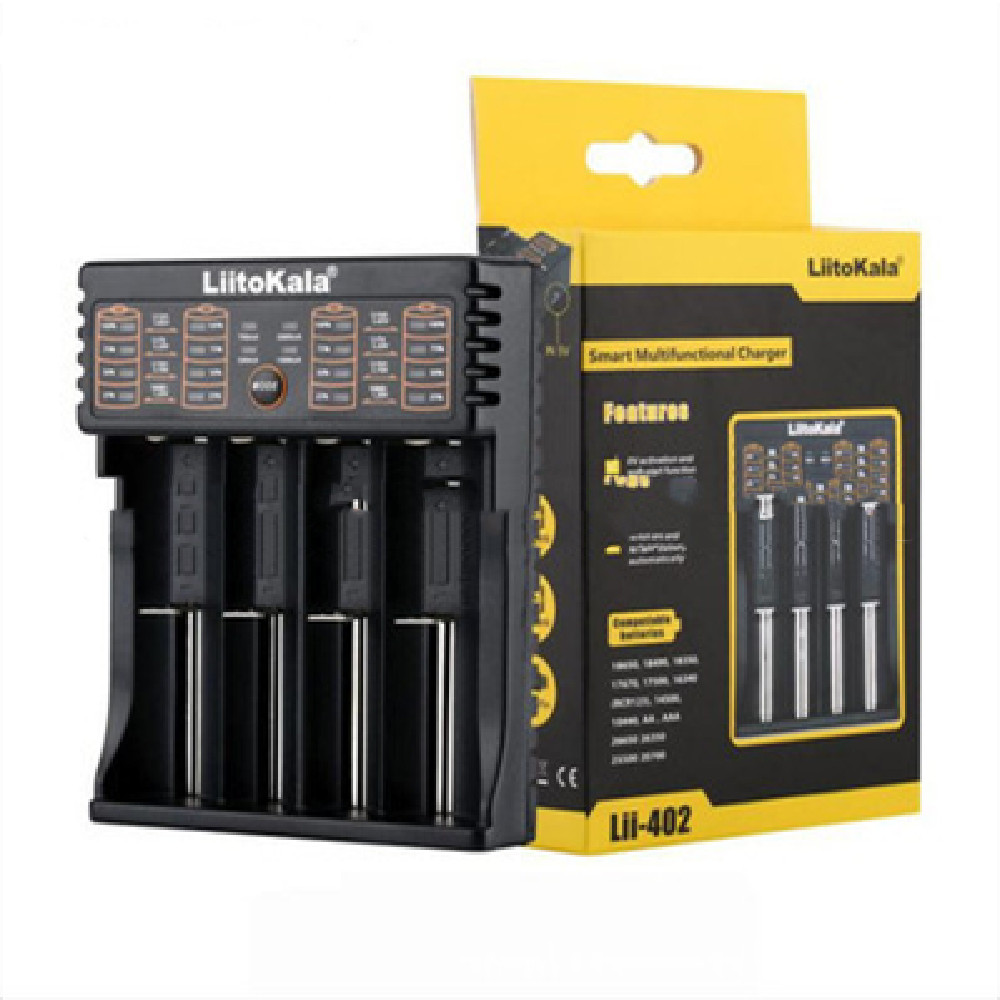

New Four Slot Lithium Battery Charger

Specification:
1. Micro USB DC 5V input, four independent charging and micro computer management system
2. Four charging current mode (500mAh/700mAhn/1000mAh/2000mAh), 2000mAh current mode is fixed only on the fourth slot
3. The LED indicators display the charging progress: 25% - 50% - 75% -100% and battery type (size): Ni-MH 1.2V , Li-Fe 3.2V, Li-ion 3.7V, Li-ion 3.85V
4. Identify Li-ion and Ni-MH batteries automatically and adjust manually the charging mode for LiFePO4 and 3.85V li-ion batteries
5. Refresh for OV battery. It don’t charge any battery of1.65 -1.85V (refresh current can be detected only)
6. Protection for over-charge and over-discharge and short circuit. Identify broken battery and polar reverse inspection
7. Charing under constant voltage and current
8. Input by DC interface and working voltage is 5V-2A (Micro plug)
9. Built with 5V/1000mAh USB discharge (output) function
10.Size: 112mm x 90mm x 30mm

Cautions:
1. The charger can charge cylinder lithium ion batteries (3.7V and 3.8V), Ni-MH/Cd, ferric phosphate lithium cell(LiFePO4)
2. Read this manual before use and pay special attention to the recommended charge current, must avoid to charge battery beyond the recommended current limit
3. 5V USB adapter (adaptor current 2A) is recommended
4. Cation heating while charging
5. Remove the charger from power source after charging complete, and remove the battery from the charger at the same time
6. For indoor use only
7. The displaying data for reference and refer to professional instrument for more accurate data

Technical specification:
1. Input : Micro USB DC 5V/2A
2. Output: 1.42V
4.2V±0.05V,
3.65±0.05V
4.35±0.05V
3. Current: 2000mA*1 1000mA*2 700mA*3 500mA*4
4. Constant voltage, cut-off current: less than 100mAh
5. Standby current: less than 15mAh

Packing list：
Charger X1PCS
